SunPower SunVault PV Disconnect Relay — #536749 | 80A | 240V Split-Phase

The interconnection component that keeps your SunVault energy storage system code-compliant and grid-ready. This PV Disconnect Relay is a factory SunPower component engineered specifically for the SunVault ESS, providing automatic disconnect between the PV array and load during grid outages or fault conditions.

Key Specs

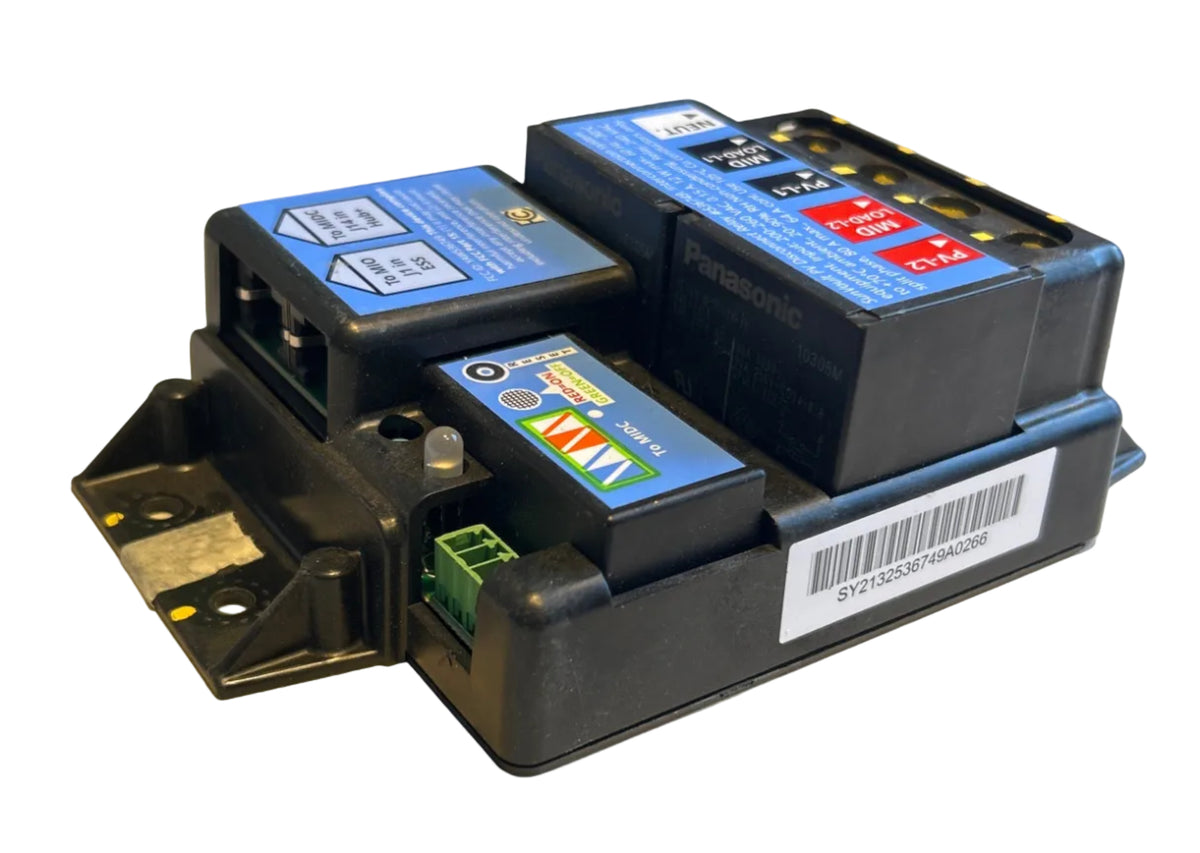

• Part Number: 536749 | Serial: SY2132536749A0266
• Input: 200–260 VAC, 0.15A, 12W max, 60 Hz
• Relay: 240 VAC split-phase, 80A max, 64A continuous
• Operating Temp: −30°C to +70°C ambient
• Humidity: 20–90% RH non-condensing
• Conductors: 105°C Cu only

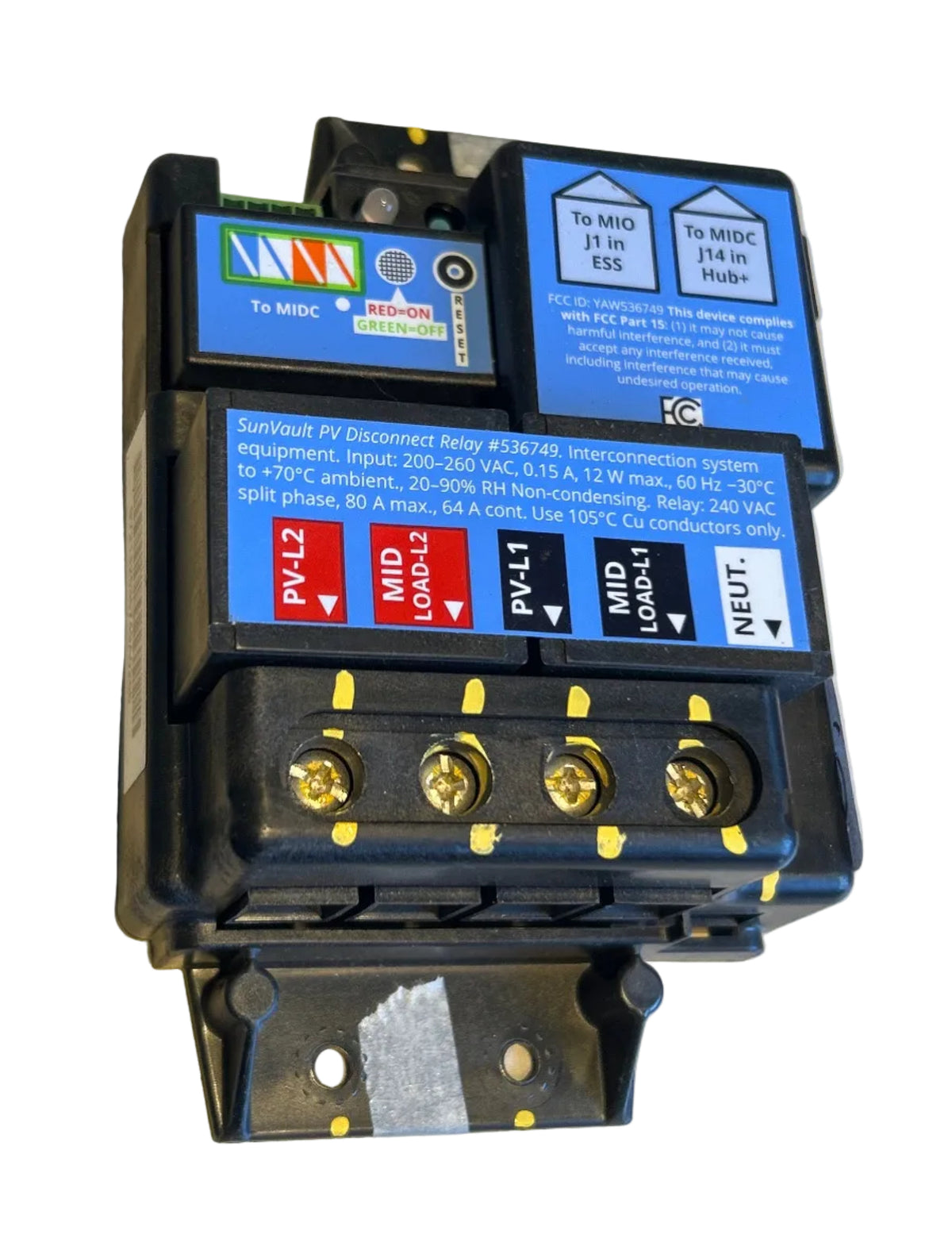

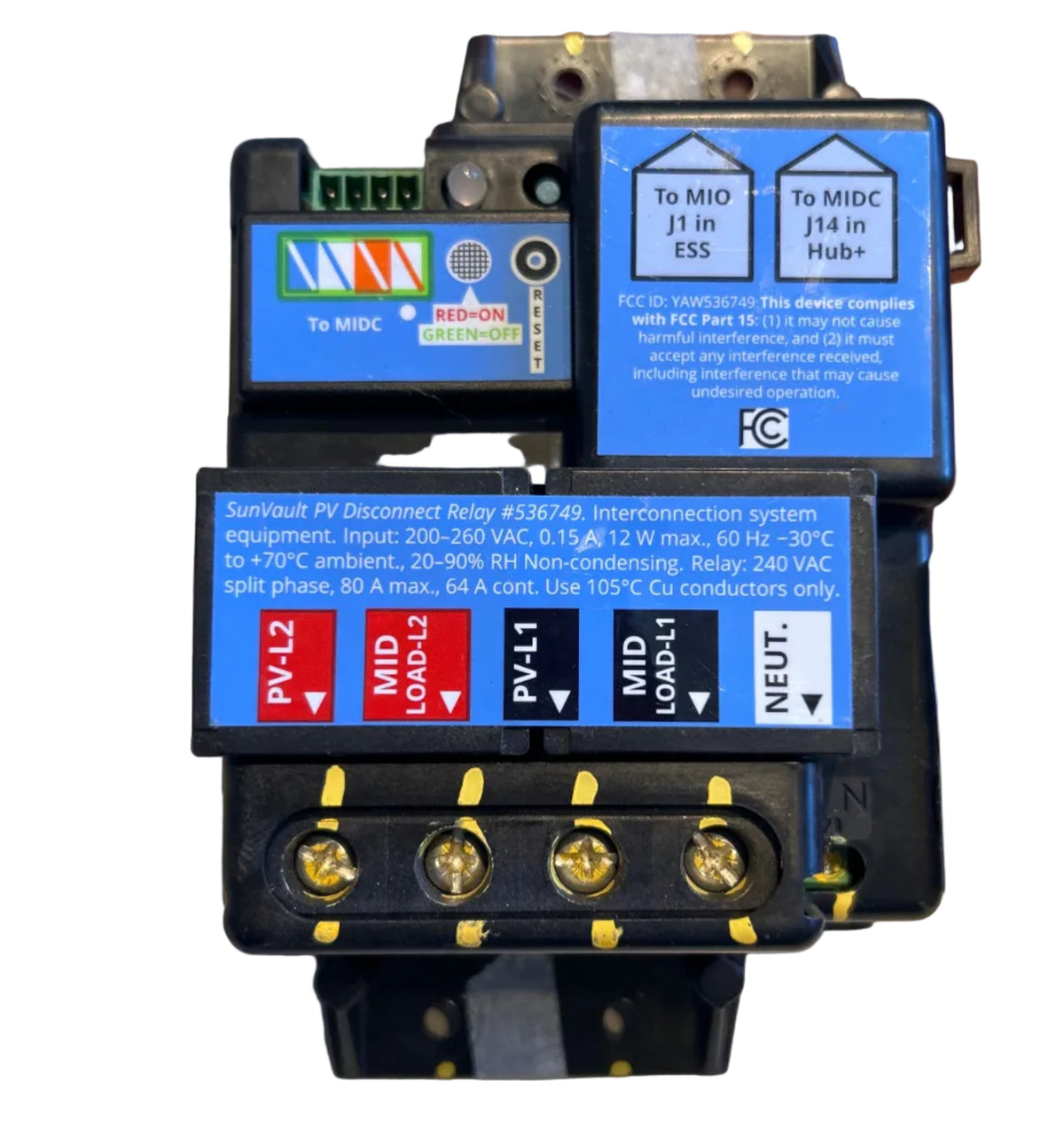

• Connections: PV-L1, PV-L2, MID LOAD-L1, MID LOAD-L2, NEUT
• Interfaces: To MIDC (ESS) and To MIDC J14 in Hub+

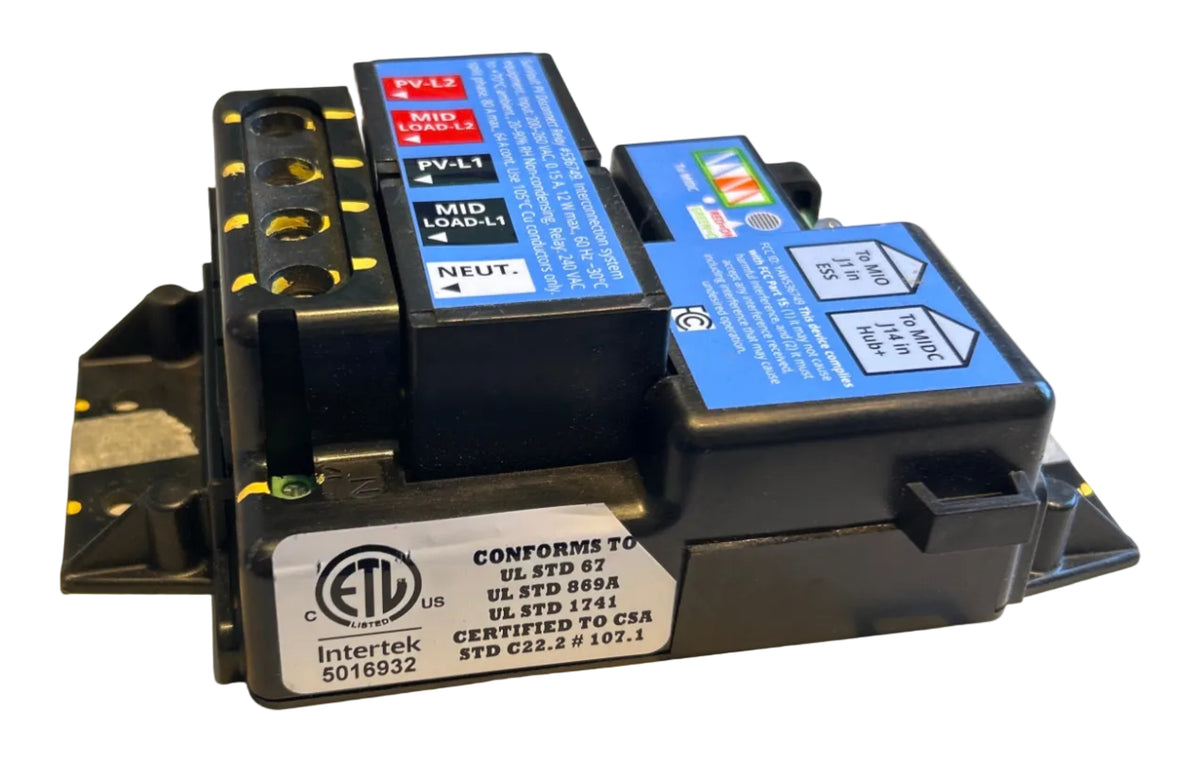

• Certifications: ETL Listed — UL STD 67, 869A, 1741; CSA C22.2 #107.1 | FCC Part 15

Condition

New. Sourced from OEM stock. Compatible with SunPower SunVault energy storage systems.
