RayTray V3 96" Solar Cable Management Tray with V3 CAP 96" — New, Open Box

RayTray V3 96" Solar Cable Management Tray with V3 CAP 96" — New, Open Box

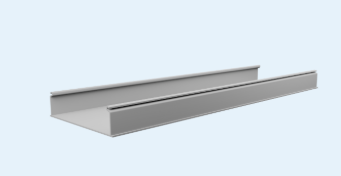

Purpose-built sunlight-resistant solar wire management tray from RayTray. The RayTray V3 is an ETL listed (UL Std 870) cable tray designed specifically for solar PV installations, rated for RHW, USE, and PV conductors up to AWG #6. This listing includes one 96" (8 ft) V3 tray section and one matching RayTray V3 CAP 96" cover. New, open box.

Product Details

• Brand: RayTray
• Model: V3
• Tray Length: 96" (8 ft)
• Included: One RayTray V3 Tray 96" + one RayTray V3 CAP 96"
• Cables Permitted: RHW, USE, PV
• Max Wire Size: AWG #6
• Max Support Interval: 4'-0"
• Material: Sunlight-resistant polymer

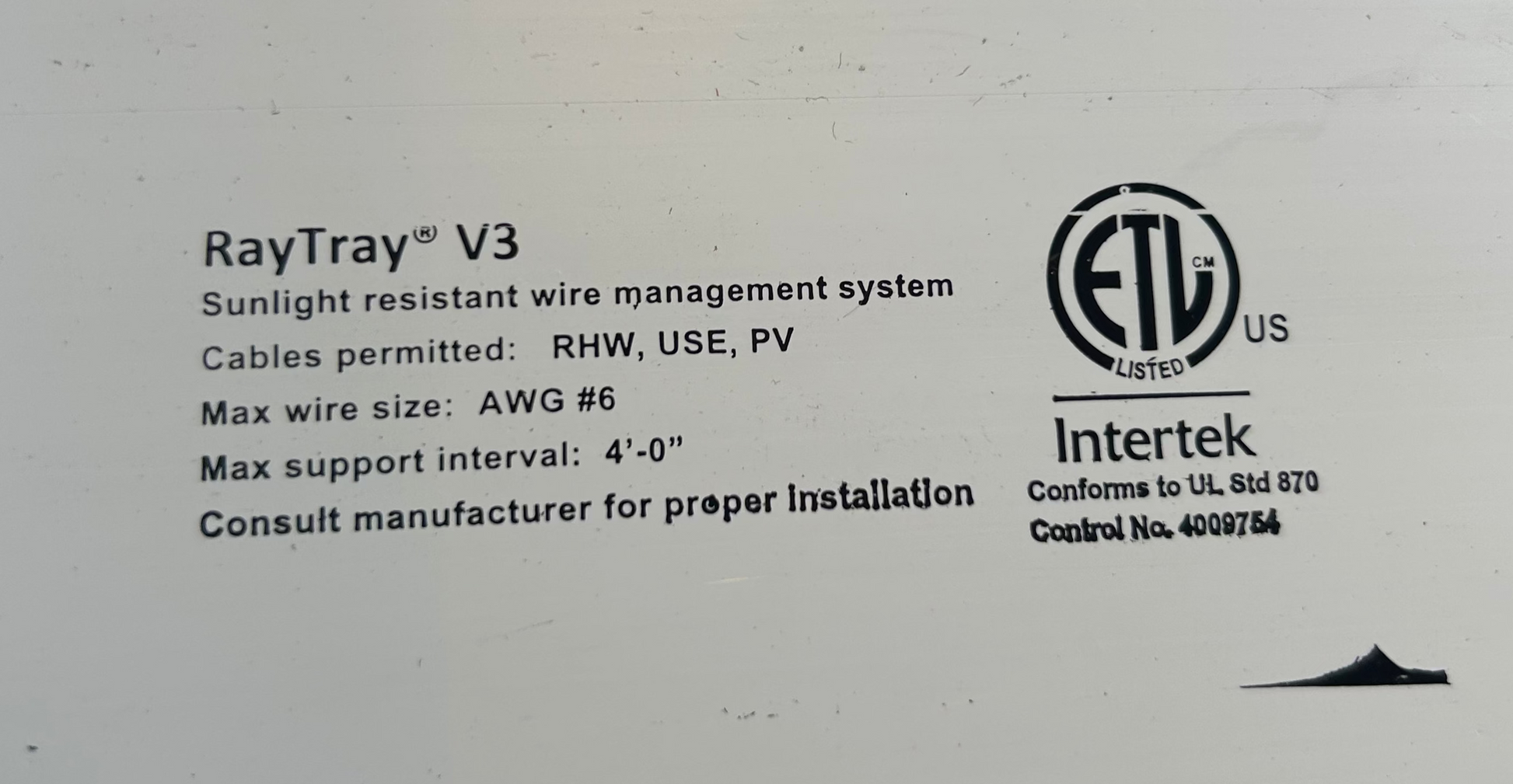

• Listing: ETL listed — conforms to UL Std 870 (Intertek, Control No. 4009754)
• Condition: New, open box

Common Applications

• Rooftop solar PV array DC wire management and protection
• Ground-mount solar array cable routing and UV protection
• Organizing and protecting PV source and output circuit conductors
• Carport and canopy solar installation wire management

Why RayTray V3?

• Purpose-engineered for solar — rated for RHW, USE, and PV cable types
• Sunlight-resistant material maintains integrity in direct UV exposure
• ETL listed to UL Std 870 — meets NEC requirements for cable tray installations
• Matching CAP cover included — encloses conductors for a clean, protected run

Local pickup only — Affton, MO 63123. Due to the 96" length, no shipping on this item.

Brand: RayTray | Model: V3 | Includes: V3 Tray 96" + V3 CAP 96" | RHW/USE/PV Rated | Max AWG #6 | ETL Listed UL 870 | Sunlight Resistant | Condition: New Open Box | Local Pickup Only — 63123
