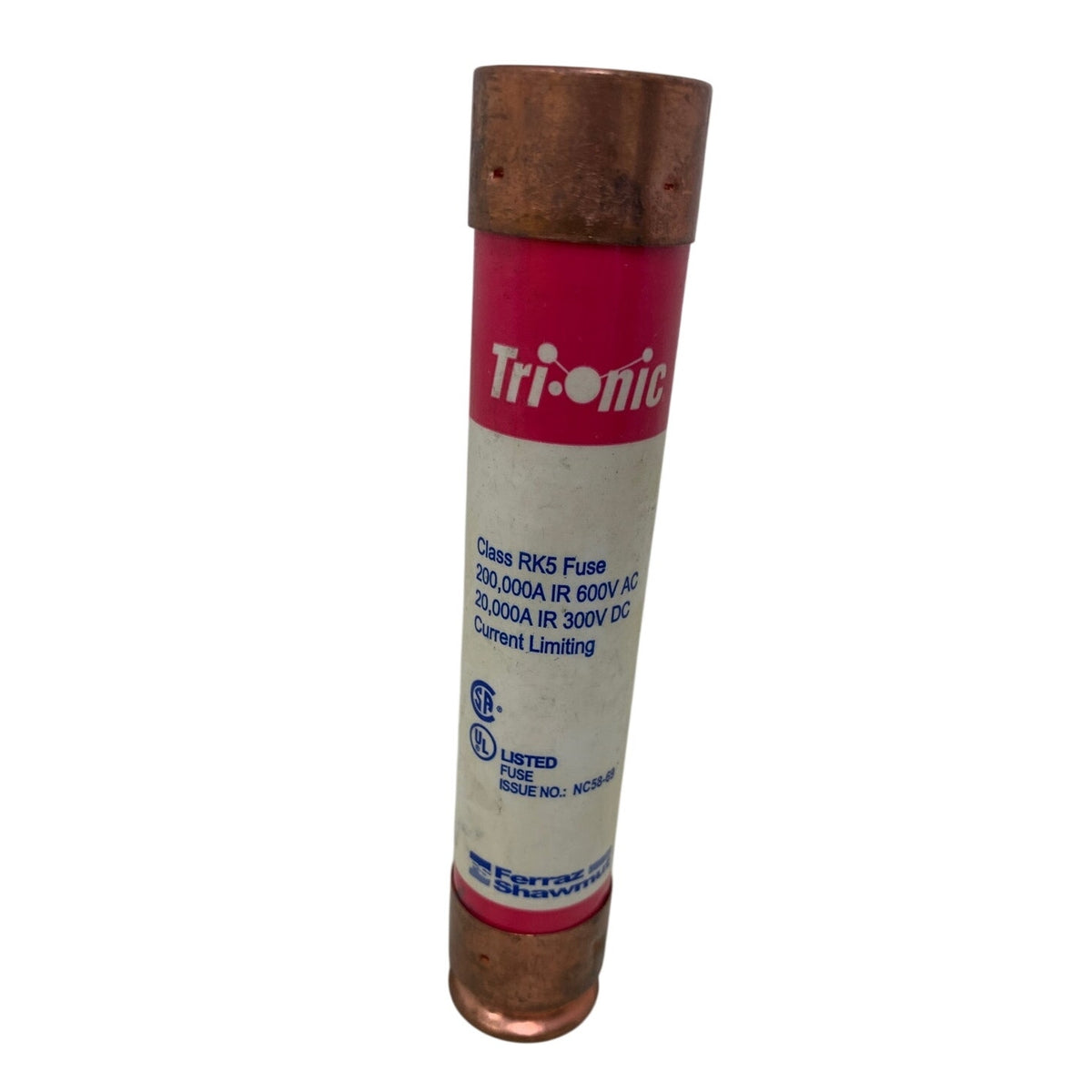

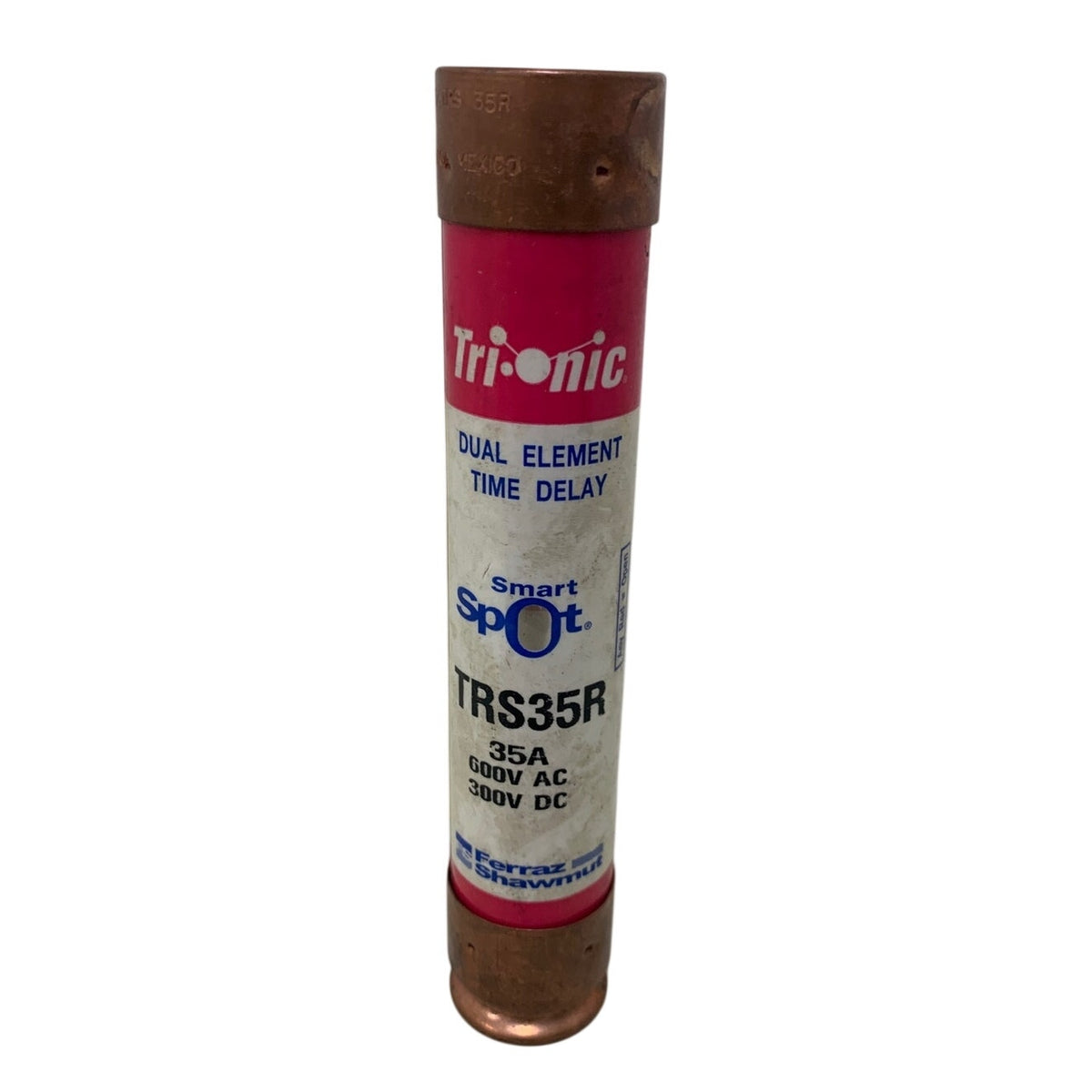

Ferraz Shawmut Tri-onic TRS35R 35A 600V Class RK5 Time-Delay Fuse — New

Ferraz Shawmut Tri-onic TRS35R 35A 600V Class RK5 Time-Delay Fuse — New

Genuine Ferraz Shawmut TRS35R Tri-onic dual-element time-delay Class RK5 fuse with Smart Spot indicating feature. 35-amp, 600VAC / 300VDC, current limiting. Interrupting rating 200,000A AC / 20,000A DC. UL and CSA listed. New, not in original packaging.

Product Details

• Brand: Ferraz Shawmut (Mersen)
• Part Number: TRS35R
• Series: Tri-onic
• Amperage: 35A
• Voltage Rating: 600VAC / 300VDC
• Class: RK5
• Type: Dual-element time-delay, current limiting
• Interrupting Rating: 200,000A AC / 20,000A DC
• Features: Smart Spot visual blown fuse indicator
• Listings: UL and CSA listed
• Dimensions: 5.5" L × 1-1/16" diameter (cylindrical)
• Condition: New, not in original packaging

Common Applications

• Motor branch circuit and feeder protection (NEC 430)
• Transformer primary and secondary protection
• Industrial control panel, MCC, and switchgear fusing
• HVAC, pump, and compressor motor circuits
• Service and feeder fusing where 600V Class RK5 is specified

Why Ferraz Shawmut Tri-onic?

• Smart Spot indicator allows fast visual identification of blown fuses without a meter
• Dual-element design tolerates motor inrush without nuisance blowing
• Current-limiting action reduces arc flash incident energy
• Class RK5 rejection feature prevents installation of lower-rated fuses

Ships standard parcel. Genuine Ferraz Shawmut (Mersen) OEM fuse.

Brand: Ferraz Shawmut | P/N: TRS35R | 35A | 600VAC/300VDC | Class RK5 | Dual-Element Time-Delay | Current Limiting | IR 200kA AC/20kA DC | Smart Spot | UL/CSA | Condition: New
