Square D RC816F200SL 200A Outdoor MeterMain Combo Service Entrance — New

Square D RC816F200SL 200A Outdoor MeterMain Combination Service Entrance Device — New

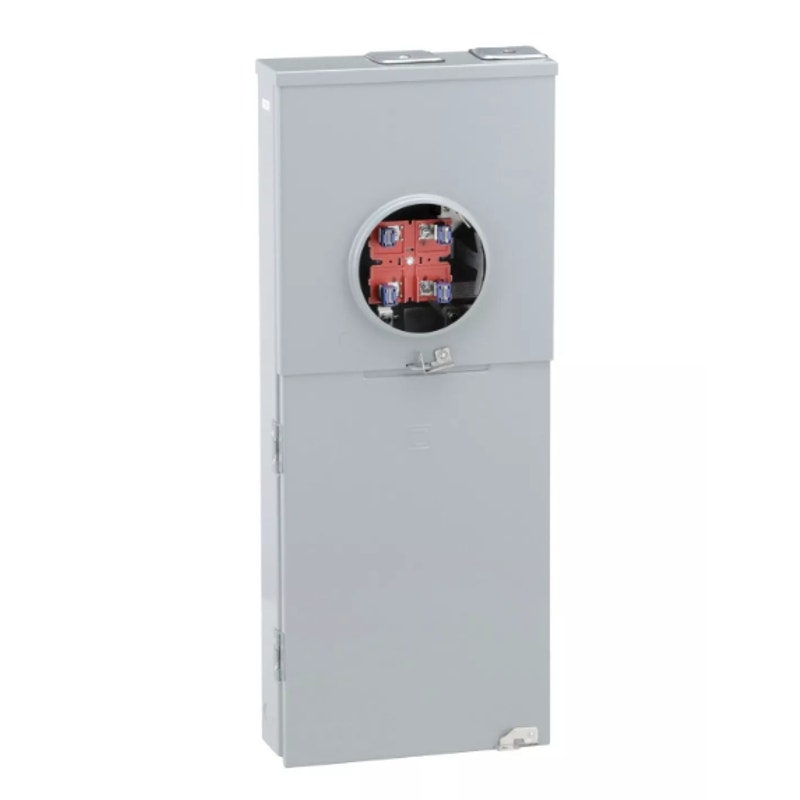

An all-in-one 200A outdoor service entrance solution from Square D by Schneider Electric. The RC816F200SL combines a ringless meter socket and a main breaker load center in a single outdoor enclosure — eliminating the need for separate meter base and panel installations. New in original box, Series M01.

Product Details

• Brand: Square D by Schneider Electric
• Model: RC816F200SL | Series: M01
• Type: Combination Service Entrance Device (MeterMain)
• Main Breaker: 200A (included)
• Spaces / Circuits: 8 spaces / 16 circuits
• Meter Socket: Ringless type, 5-jaw, with lever bypass
• Feed: Feed-thru lugs — overhead or underground feed compatible
• Voltage: 120/240V, 1Φ, 3-wire, 50/60 Hz
• Enclosure: Outdoor rated
• Compatible Breakers: Homeline (HOM) branch breakers, 200A max, Type A hub
• Certifications: UL listed (97661)
• Weight: ~50 lbs (70 lbs / 34 kg per box label)
• Condition: New in original box

Common Applications

• Residential service entrance upgrades to 200A
• New construction single-family home electrical service
• Manufactured home and mobile home service entrance
• Detached garage, shop, or outbuilding 200A service
• Solar + grid service entrance with main breaker for backfeed

Why MeterMain Combo?

• Single enclosure replaces separate meter base + main panel — saves labor and materials
• Ringless meter socket with lever bypass allows meter pull without power interruption
• Feed-thru lugs support overhead and underground utility feeds
• 200A main breaker provides whole-service disconnect at the meter location
• Homeline breaker compatibility gives broad availability of branch circuit breakers

Brand: Square D | Model: RC816F200SL | 200A | 8 Spaces / 16 Circuits | Outdoor | MeterMain Combo | Ringless | Main Breaker Included | UL Listed | New In Box
