New Jiangyin Spark XH-SCT-1250 200A 0.333V Split Core Energy Monitor CT

This is a new Jiangyin Spark XH-SCT-1250-200A/0.333V split-core current transformer (CT) for energy monitoring applications. New but not in original packaging. The split-core design clamps around an existing conductor without disconnecting it, making installation fast and non-invasive on service entrance cables, solar production lines, or branch circuits.

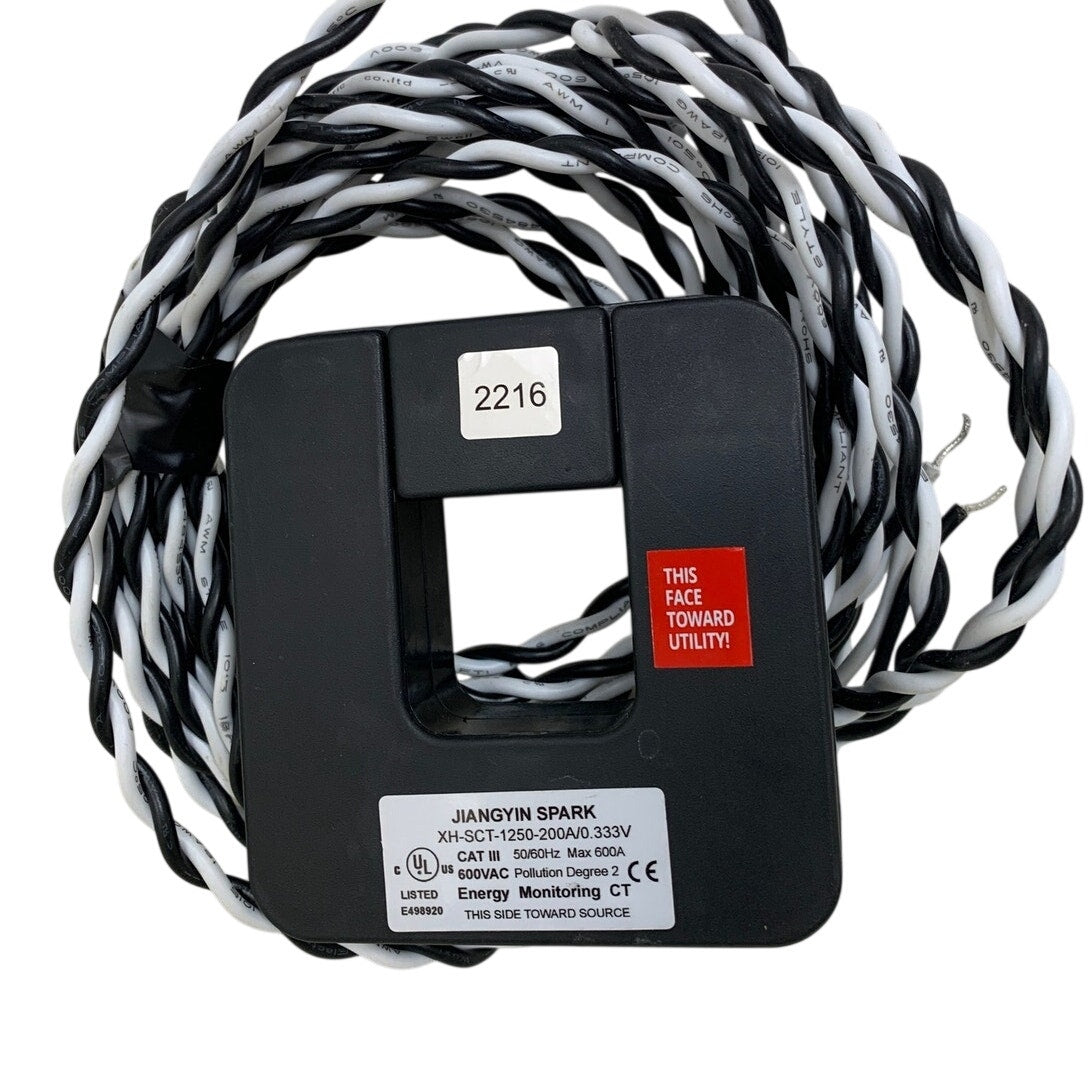

The 0.333V millivolt output is compatible with a wide range of energy monitoring systems including Emporia Energy Vue, Sense, Powerwall, Neurio, and solar inverter monitoring inputs. UL listed and CE certified. The red “This Face Toward Utility” label ensures correct polarity orientation during installation.

Key Specs

• Brand: Jiangyin Spark

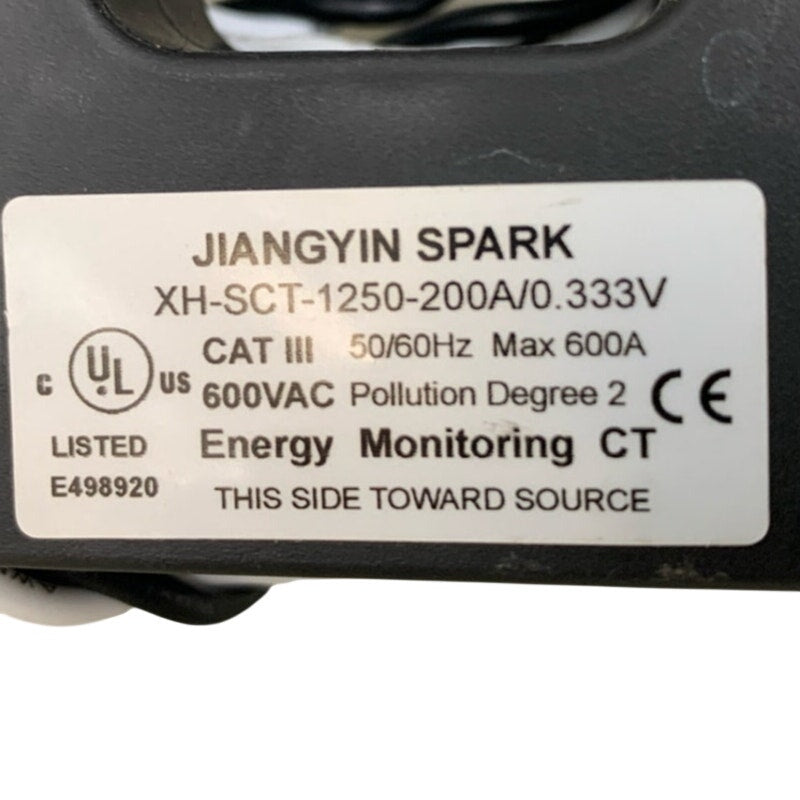

• Model: XH-SCT-1250-200A/0.333V
• Rated Current: 200A nominal / Max 600A
• Output: 0.333V (millivolt)
• Voltage Rating: 600VAC, CAT III
• Frequency: 50/60Hz
• Pollution Degree: 2
• Certifications: UL Listed (E498920), CE
• Type: Split-core current transformer
• Condition: New, no original packaging
• Application: Solar energy monitoring, whole-home energy monitoring, utility service entrance CT
